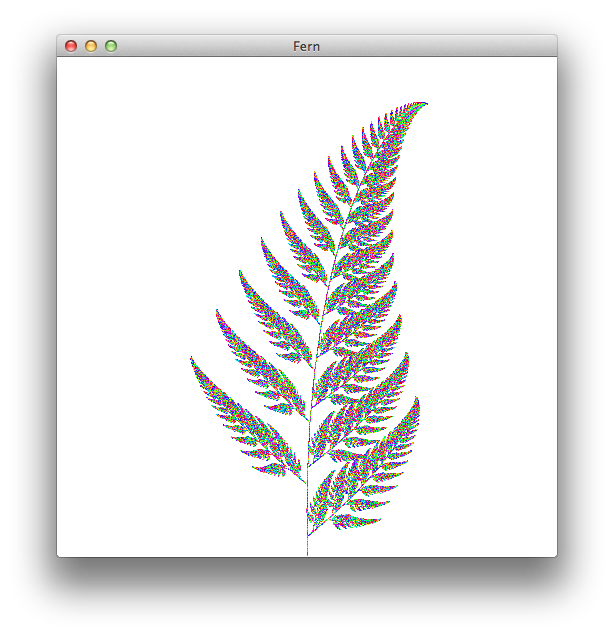

What is Processing?

How do basic sketches work?

Two main parts

void setup()
{
  // called at the beginning
}

void draw()
{
  // run every refresh
  // default 60 frames per second
}


Set screen size

void setup()
{
  size(400, 600); // width, height (pixels)
}


Draw something

void setup()
{
  size(400, 600);
}

void draw()
{
  fill(255, 0, 0); // make fill color red
  // centered at x, y and width, height
  ellipse(200, 200, 300, 300);
}

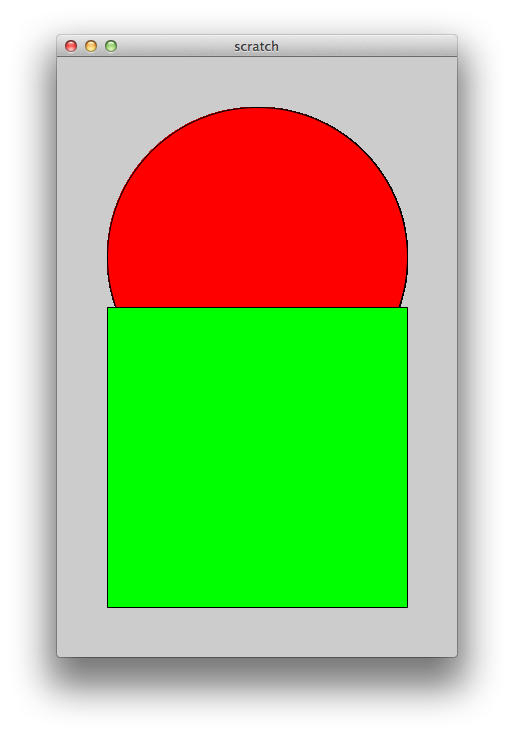

Draw order

void setup()
{
  size(400, 600);
}

void draw()
{
  fill(255, 0, 0);
  ellipse(200, 200, 300, 300);
  fill(0, 255, 0);
  // top left x,y and width, height
  rect(50, 250, 300, 300);
}


How can I animate this?

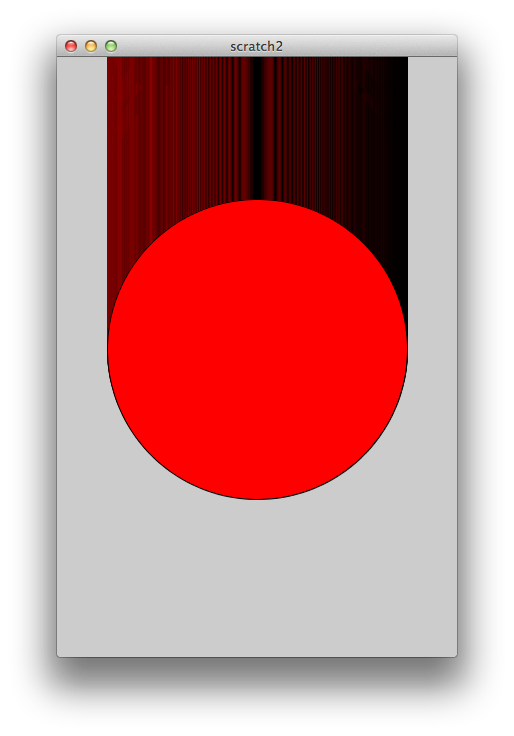

Draw a bunch!

void setup()
{
  size(400, 600);
}

int y = 0;
void draw()
{
  fill(255, 0, 0);
  ellipse(200, y, 300, 300);
  y = y + 1; // update the y component
}


Draw a bunch better!

void setup()
{
  size(400, 600);
}

int y = 0;
void draw()
{
  background(255); // white background
  fill(255, 0, 0);
  ellipse(200, y, 300, 300);
  y = y + 1;
}


How can I click things?

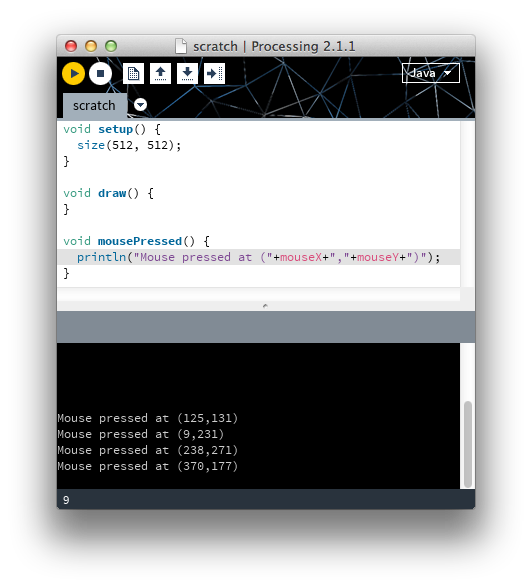

Click

void setup() {
  size(512, 512);
}

void draw() {
}

// special method, every mouse click
void mousePressed() {
  println("Mouse pressed at ("+mouseX+","+mouseY+")");
}

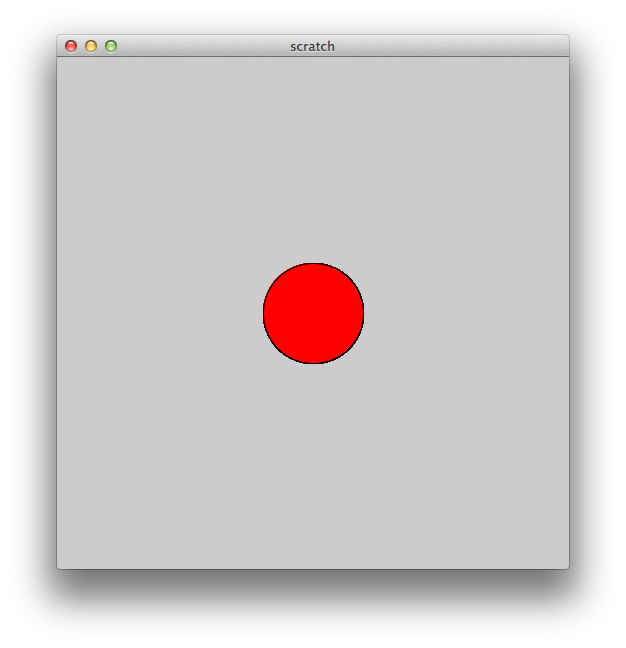

Click better

void setup() {
  size(512, 512);
}

void draw() {
  fill(255, 0, 0);
  ellipse(256, 256, 100, 100);
}

void mousePressed() {
  if (sq(mouseX-256)+sq(mouseY-256) < sq(50)) {
    println("Circle! :)");
  } else {
    println("Not circle! :(");
  }
}


How can I share this with my mom?

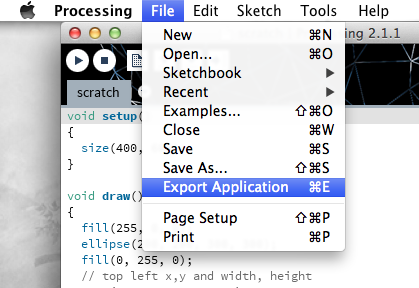

Export it!

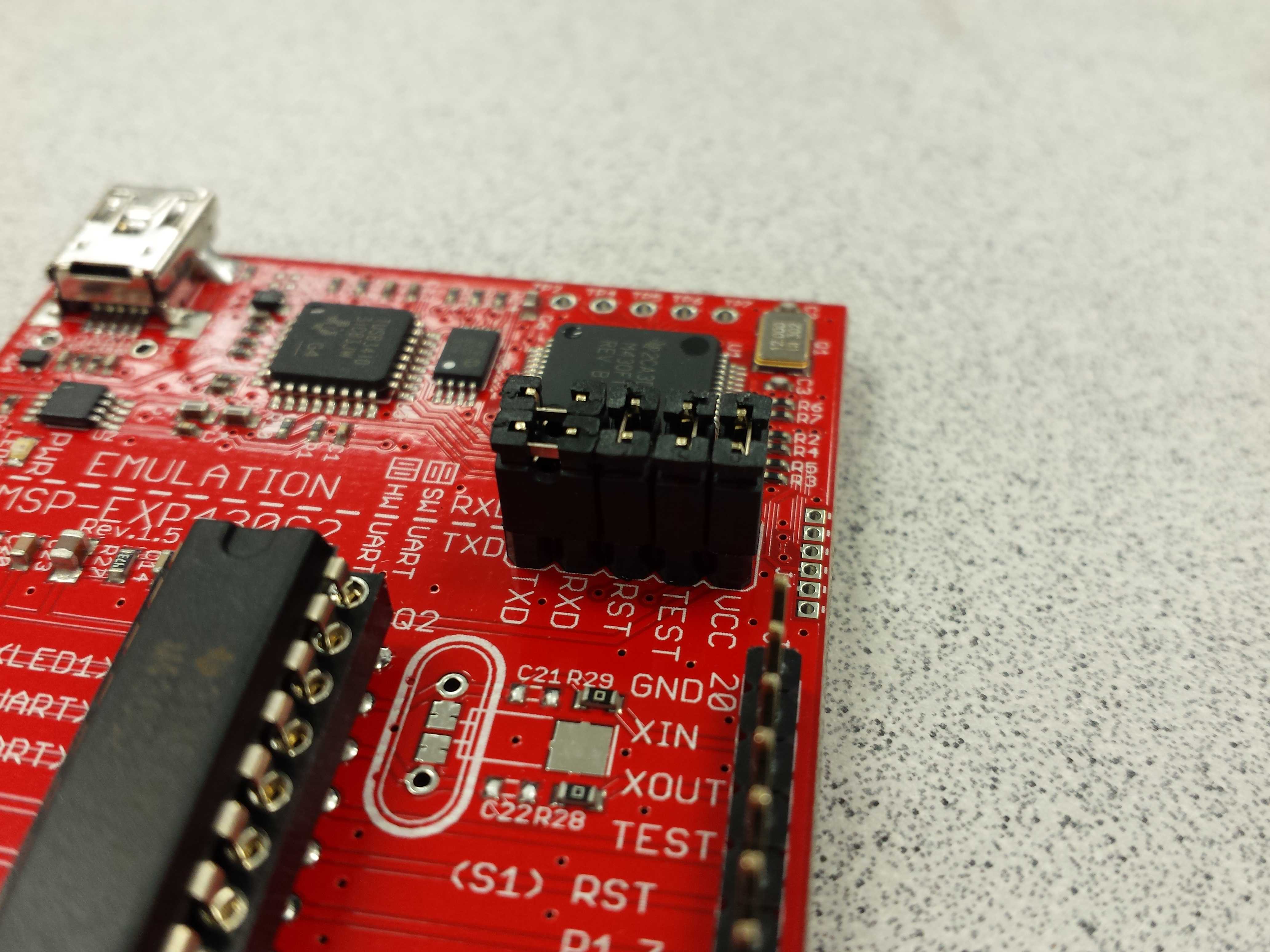

Why am I having trouble with serial communication?

You didn't read the serial communication configuration documentation!

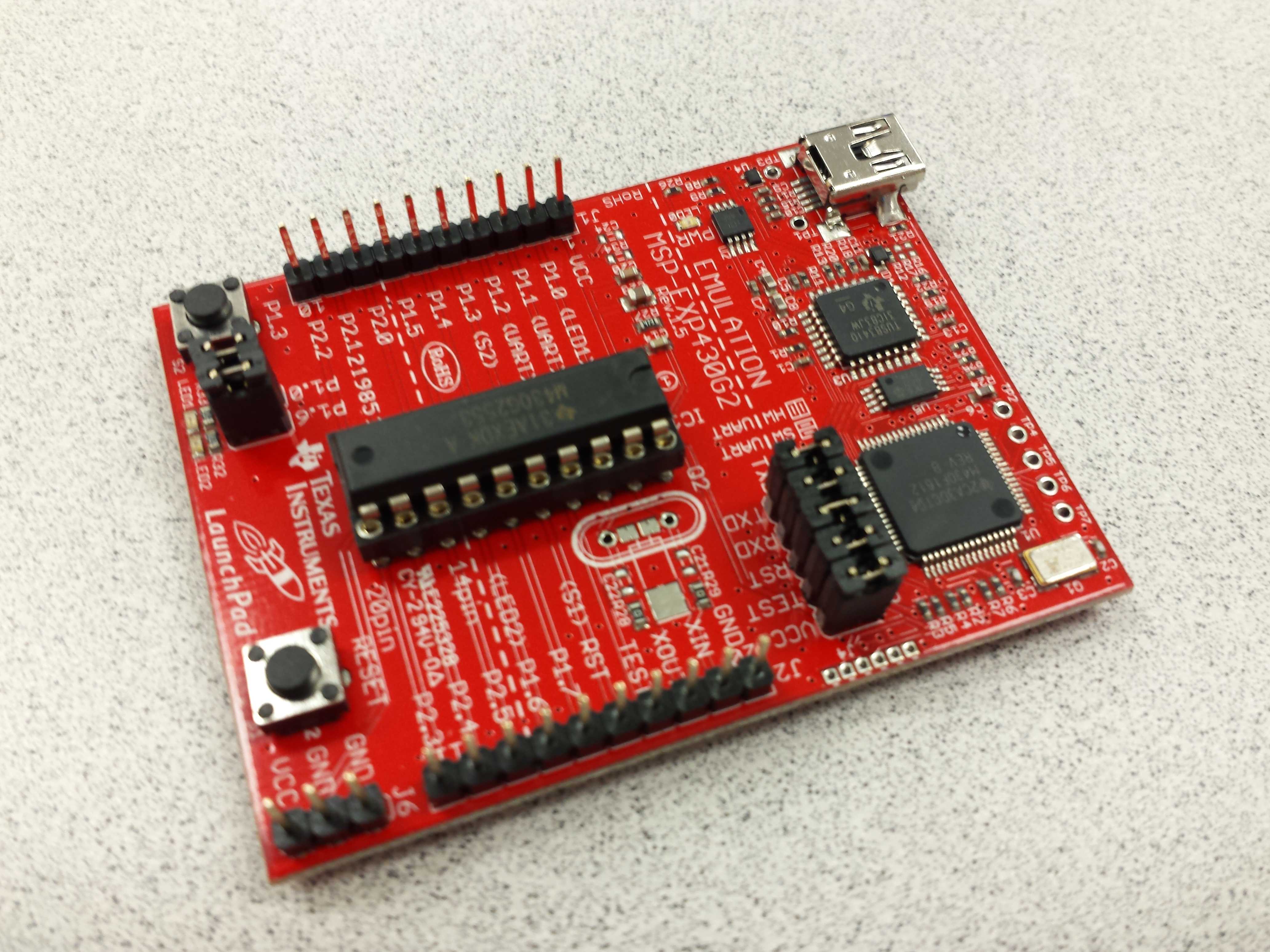

Without serial communication

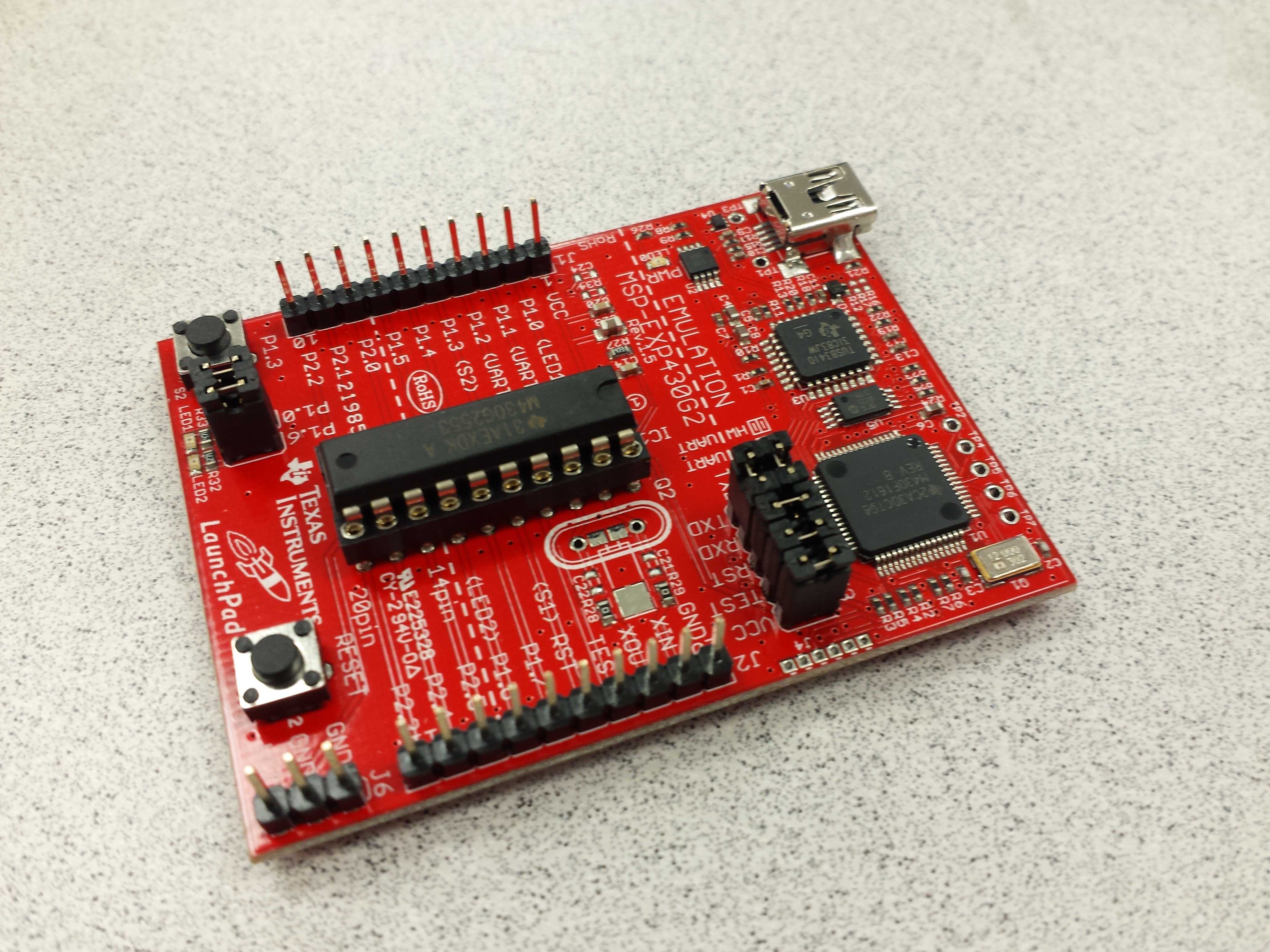

With serial communication

Catch it?!

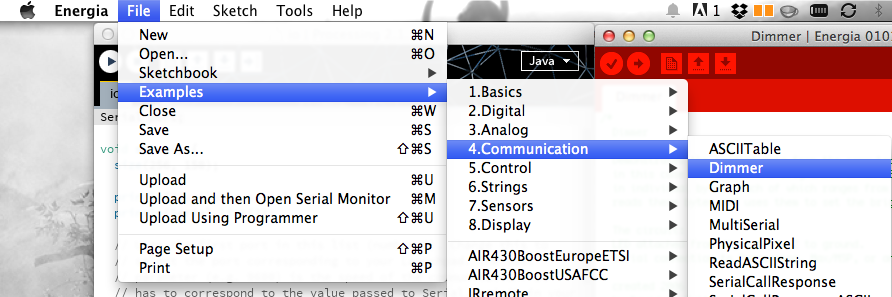

Try it out with "Dimmer"

What are we doing today?

Goal

Make a UI with at least 4 click-able events/objects. Examples:

• the cow goes...
• body anatomy
• this is a circle

Bonus Goal

Make an LED light switch with a UI using serial communication.

Begin!
